Gain-sharing Automixer Follower

Overview

Properties

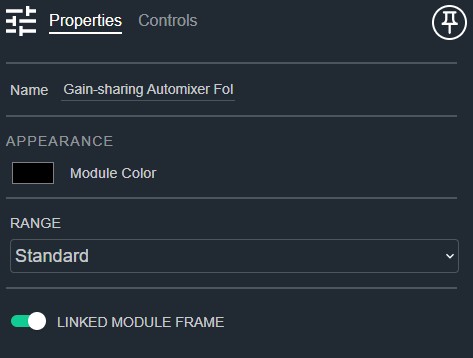

Gain Sharing Automixer Follower Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-120 to +120). Default: Standard. Options: Trim|Standard|Hi
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

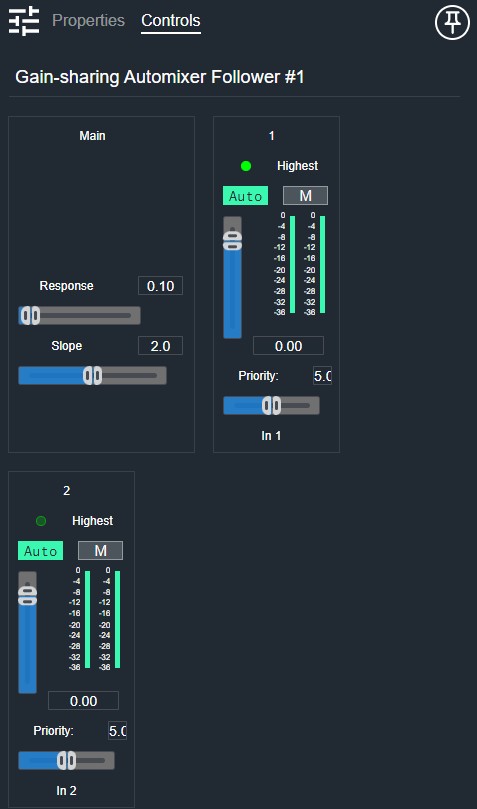

Gain Sharing Automixer Follower Controls

Main section:

  • Response (Numeric): Displays the gain-sharing response time.
  • Response (Fader): Sets the gain-sharing response time.
  • Slope (Numeric): Displays the gain-sharing slope value.
  • Slope (Fader): Sets the gain-sharing slope (sensitivity to level differences).

Per channel:

  • Highest Gain (LED): Indicates this channel currently has the highest gain in the mix.
  • Auto (Button, toggle): Enables automatic gain sharing for this channel.
  • Mute (Button, toggle): Mutes this channel.
  • Gain (Fader): Adjusts this channel's gain.
  • Input Meter (Meter): Displays the pre-processing input level for this channel.
  • Gain Meter (Meter): Displays the gain-sharing gain applied to this channel.
  • Gain Readout (Numeric): Displays the current gain value for this channel.
  • Priority (Numeric): Displays the priority value for this channel.
  • Priority (Fader): Sets the gain-sharing priority for this channel.

I/O

Gain Sharing Automixer Follower IO

  • In (Input, Audio): 1–64 signals, 1 channel
  • Out (Output, Audio): 1–64 signals, 1 channel
