Channel Splitter

Overview

Properties

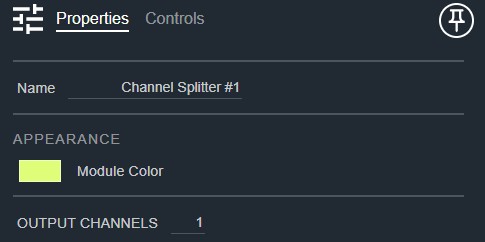

Channel Splitter Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Output Channels: The number of channels in each signal. Default: 1. Range: 1–64

Controls

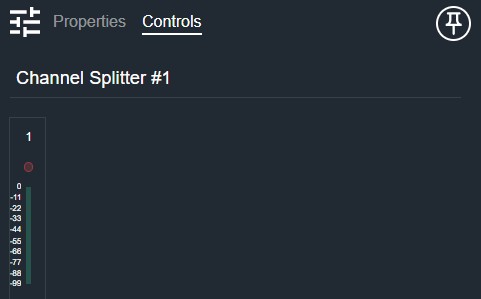

Channel Splitter Controls

Per input signal:

  • Signal (LED): Clip indicator for this input signal.
  • Signal (Meter): Level meter for this input signal.

I/O

Channel Splitter IO

  • In (Input, Audio): 1 signal, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
