Parametric EQ

Overview

Properties

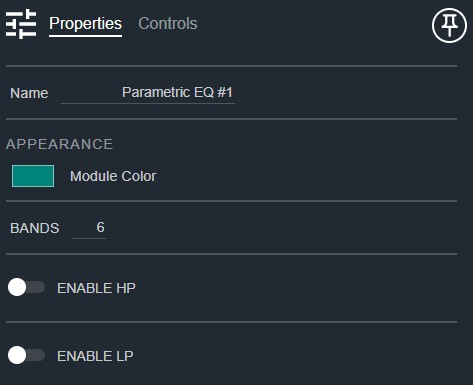

Parametric EQ Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Bands: The number of Parametric EQ bands available. Default: 6. Range: 1–32
  • Enable HP: Enable high pass filter with adjustable slope. Default: Disable
  • Enable LP: Enable low pass filter with adjustable slope. Default: Disable

Controls

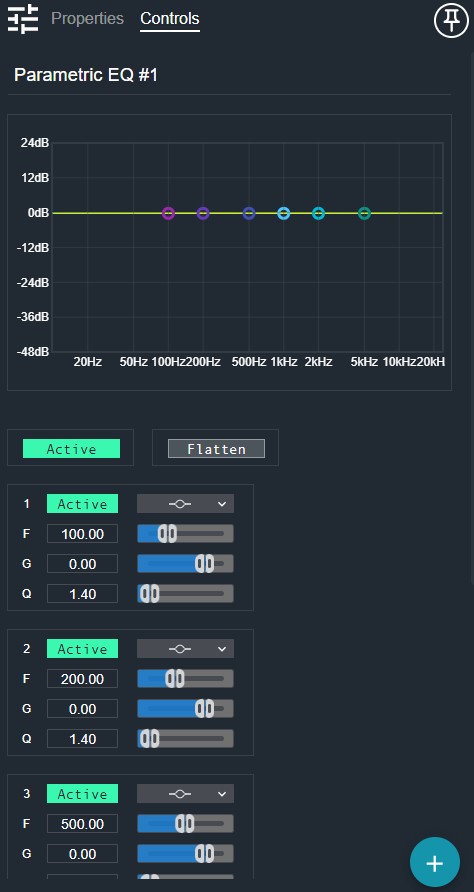

Parametric EQ Controls

  • Active (Button, toggle): Enables or bypasses the entire EQ.
  • Flatten All (Button, momentary): Resets all bands to flat (0 dB gain).

Per EQ band:

  • Band Active (Button, toggle): Enables or bypasses this individual band.
  • Type (Drop List): Selects the filter type for this band (e.g., peaking, high shelf, low shelf).
  • Frequency (Numeric): Displays the center or corner frequency for this band.
  • Frequency (Fader): Adjusts the center or corner frequency for this band.
  • Gain (Numeric): Displays the gain boost or cut for this band.
  • Gain (Fader): Adjusts the gain boost or cut for this band.
  • Q (Numeric): Displays the Q (bandwidth) for this band.
  • Q (Fader): Adjusts the Q (bandwidth) for this band.

High-pass filter section (shown when Enable HP is set):

  • Active (Button, toggle): Enables or bypasses the high-pass filter.
  • Type (Drop List): Selects the high-pass filter type.
  • Frequency (Numeric): Displays the high-pass filter cutoff frequency.
  • Frequency (Fader): Adjusts the high-pass filter cutoff frequency.
  • Slope (Drop List): Selects the high-pass filter roll-off slope.
  • Q (Numeric): Displays the Q for the high-pass filter.
  • Q (Fader): Adjusts the Q for the high-pass filter.

Low-pass filter section (shown when Enable LP is set):

  • Active (Button, toggle): Enables or bypasses the low-pass filter.
  • Type (Drop List): Selects the low-pass filter type.
  • Frequency (Numeric): Displays the low-pass filter cutoff frequency.
  • Frequency (Fader): Adjusts the low-pass filter cutoff frequency.
  • Slope (Drop List): Selects the low-pass filter roll-off slope.
  • Q (Numeric): Displays the Q for the low-pass filter.
  • Q (Fader): Adjusts the Q for the low-pass filter.

I/O

Parametric EQ IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
