Mixer Module Features

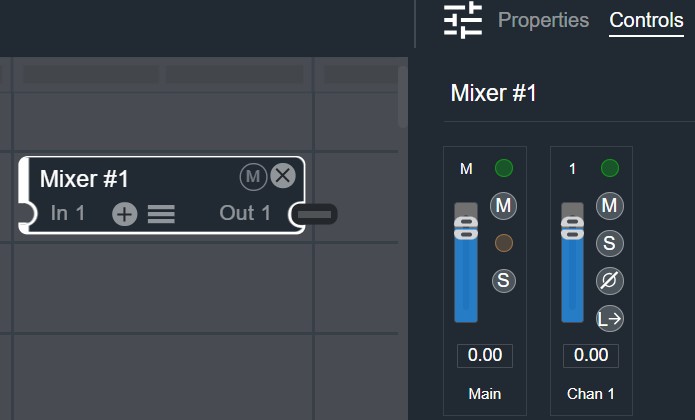

When you first add a mixer module to the signal-flow work area, it has one input and one output. The Controls tab shows one main fader, one input fader, and associated controls.

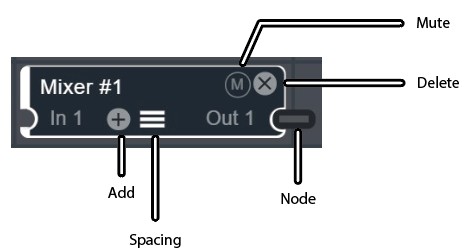

Hover over the module to show additional controls, such as adding an input channel, adjusting the row spacing, duplicating an output channel, muting the output, and deleting the module. The module outline turns white when selected.

Adding a Channel

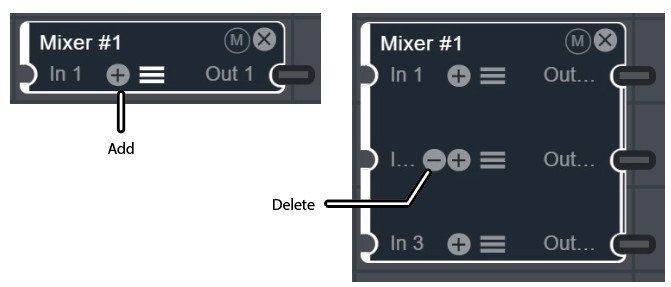

Click the plus sign to add an input channel. Click the minus sign to delete one.

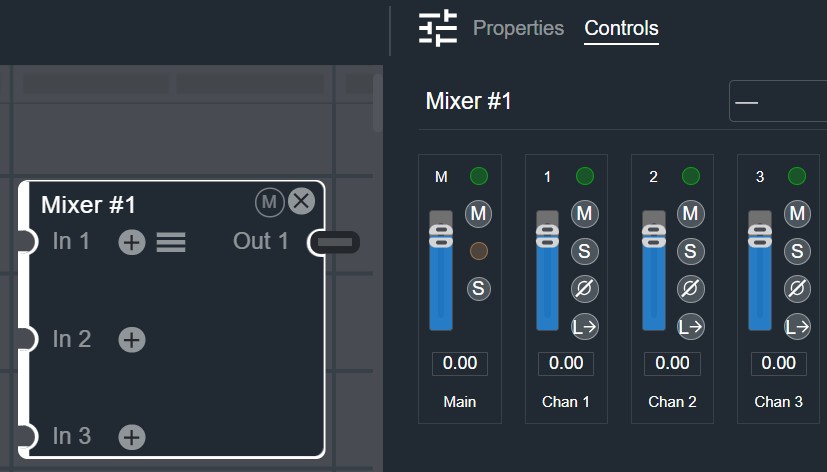

In this example, two inputs are added by clicking the plus sign twice. The Controls tab now shows one main fader and three input faders, each with mute, solo, and a numeric readout.

Copying an Output

Hover over the output area to show the copy icon. Click it to duplicate the output. For example, output 1 becomes 1a, 1b, and 1c, all identical.

To delete an output, hover over the output and click the minus sign.

Muting the Main Output

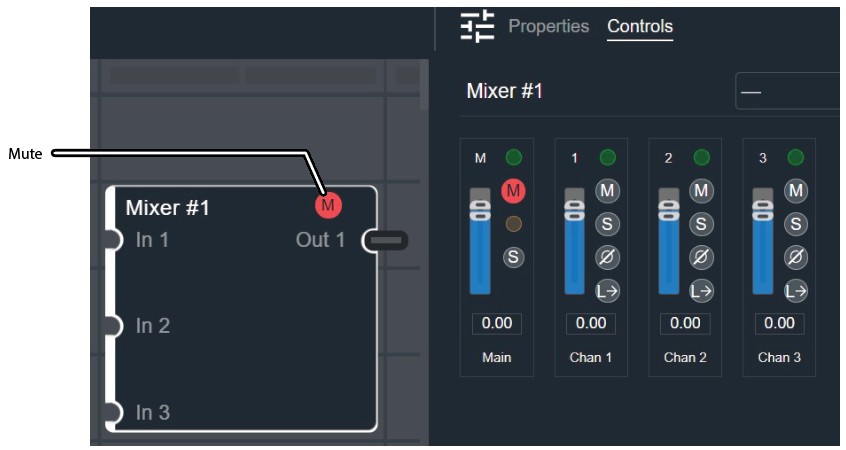

Hover over the top right of the module and click M to mute the module's main audio output. The M turns into a red circle. Click it again to unmute. Click the M mute buttons in the Controls tab to mute individual channels. Click the S solo buttons to solo channels.

Adjusting the Row Spacing

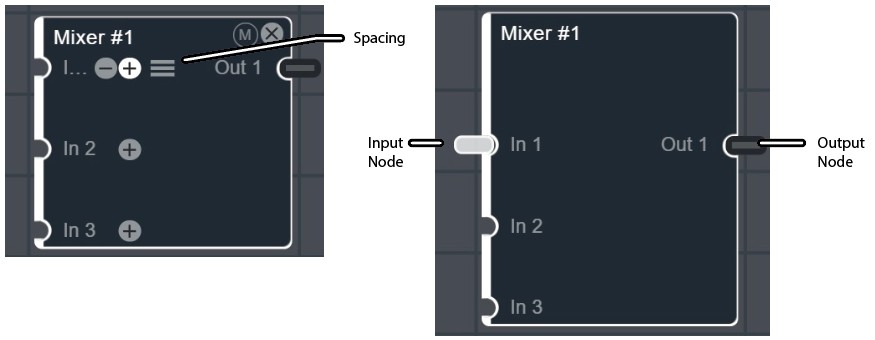

Click and drag the spacing handles to increase or decrease the physical spacing between rows. Any other modules close below this one move downward automatically. Alternatively, click and drag the input and output nodes to change the spacing.

Deleting a Module

Hover in the top-right corner of the module and click the X to delete the module. Press Ctrl+Z to undo the deletion.
