Audio Output

Overview

Properties

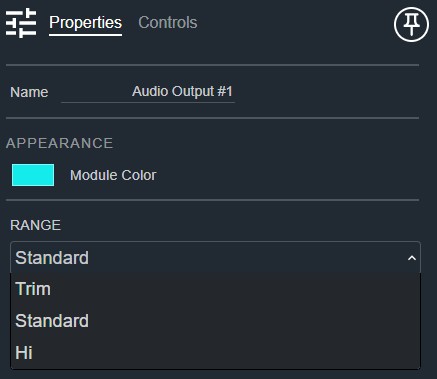

Audio Output Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi

Controls

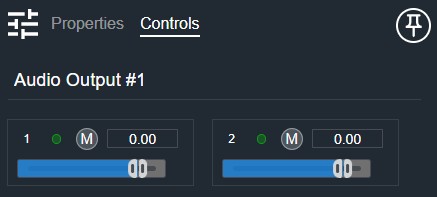

Audio Output Controls

Per channel:

  • Meter (LED, read-only): Audio level indicator for the output channel.
  • Mute (Button, toggle): Mutes this channel.
  • Gain Readout (Numeric): Displays the current gain value.
  • Gain (Fader): Adjusts the output gain.

I/O

Audio Output IO

  • Out (Input, Audio): 1–64 signals, 1–64 channels
  • Destination (Output, Audio): 1–64 signals, 1–64 channels
