2-Way

Overview

Properties

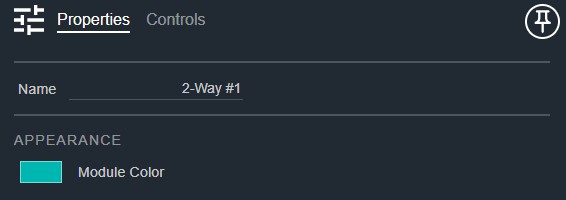

2 Way Crossover Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

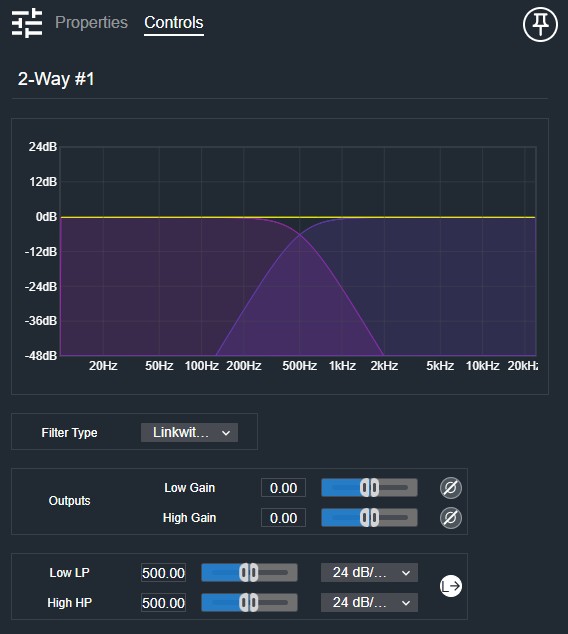

2 Way Crossover Controls

  • Filter Type (Drop List): Selects the crossover filter type (e.g., Butterworth, Linkwitz-Riley).

Per output way:

  • Gain Readout (Numeric): Displays the output gain for this way.
  • Gain (Fader): Adjusts the output gain for this way.
  • Invert (Button, toggle): Inverts the polarity of this way's output.

Crossover point:

  • LP Frequency (Numeric): Displays the low-pass crossover frequency.
  • LP Frequency (Fader): Sets the low-pass crossover frequency.
  • LP Slope (Drop List): Selects the low-pass filter roll-off slope.
  • HP Frequency (Numeric): Displays the high-pass crossover frequency.
  • HP Frequency (Fader): Sets the high-pass crossover frequency.
  • HP Slope (Drop List): Selects the high-pass filter roll-off slope.
  • Link (Button, toggle): Links the LP and HP crossover frequencies together.

I/O

2 Way Crossover IO

  • In (Input, Audio): 1–16 signals, 1–64 channels
  • Lo (Output, Audio): 1–16 signals, 1–64 channels
  • Hi (Output, Audio): 1–16 signals, 1–64 channels
