VCA

Overview

Properties

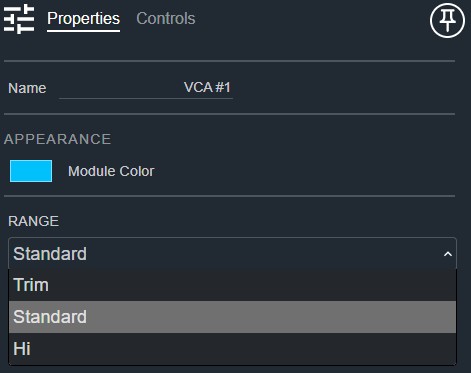

VCA Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi

Controls

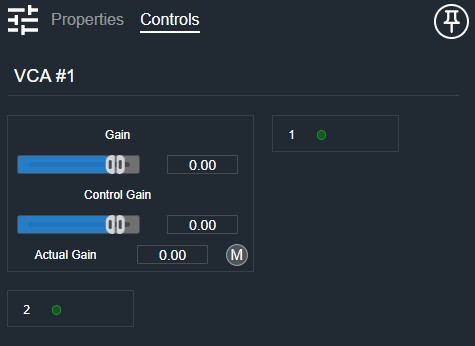

VCA Controls

  • Gain (Fader): Sets the base gain of the VCA.
  • Gain Readout (Numeric): Displays the base gain value.
  • Control Gain (Fader): Sets the gain applied to the control signal.
  • Control Gain Readout (Numeric): Displays the control gain value.
  • Actual Gain (Numeric, read-only): Displays the resulting combined gain.
  • Mute (Button, toggle): Mutes all audio channels.

Per channel:

  • Meter (LED, read-only): Audio level indicator for this channel.

I/O

VCA IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
