Gain

Overview

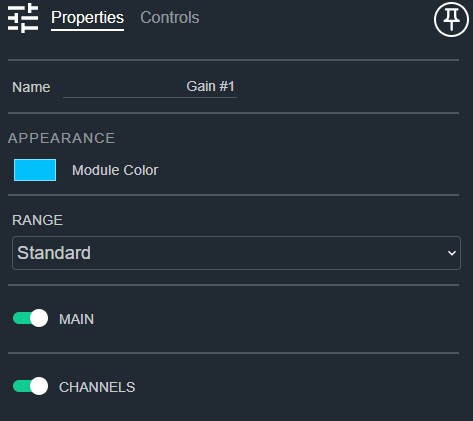

Properties

• Name: Type here to change the module name
• Appearance: Click on the colored box to change the module color
• Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi
• Main: Determines if there is a main channel control strip. Default: Enable
• Channels: Determines if there are channel control strips. Default: Enable

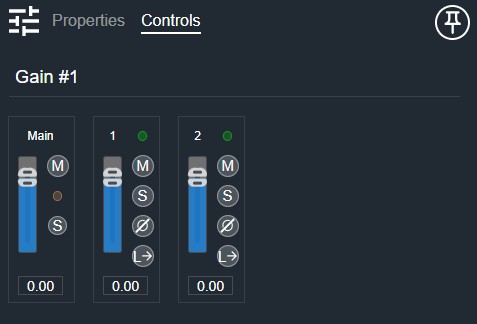

Controls

Main section (shown when Main is enabled):

• Gain (Fader): Adjusts the overall output gain.
• Mute (Button, toggle): Mutes all channels simultaneously.
• Any Solos (LED, read-only): Indicates when any channel solo is active.
• Clear Solos (Button, momentary): Clears all active channel solos.
• Gain Readout (Numeric): Displays the main gain value.

Per channel (shown when Channels is enabled):

• Meter (LED, read-only): Audio level indicator for this channel.
• Gain (Fader): Adjusts this channel's gain.
• Mute (Button, toggle): Mutes this channel.
• Solo (Button, toggle): Solos this channel, muting all others.
• Invert (Button, toggle): Inverts the phase of this channel.
• Link (Button, toggle): Links this channel's gain to adjacent linked channels.
• Gain Readout (Numeric): Displays the current gain value for this channel.

I/O

• In (Input, Audio): 1–64 signals, 1–64 channels
• Out (Output, Audio): 1–64 signals, 1–64 channels
