Audio Meter

Overview

Properties

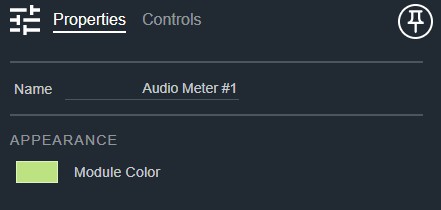

Audio Meter Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

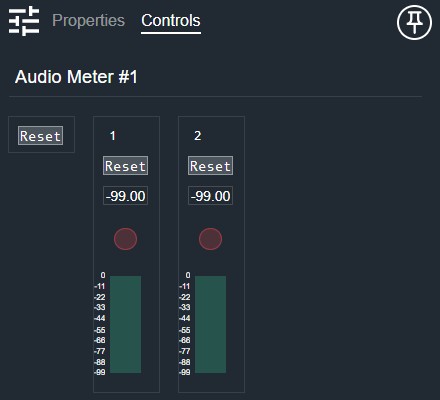

Audio Meter Controls

Global (shown when multiple inputs are present):

  • Main Peak Reset (Button, momentary): Resets all peak hold indicators simultaneously.

Per input:

  • Peak Reset (Button, momentary): Resets the peak hold indicator for this input.

Per channel:

  • Peak (Numeric, read-only): Displays the peak-hold level for this channel.
  • Signal (LED): Clip indicator for this channel.
  • Signal (Meter): Level meter for this channel.

I/O

Audio Meter IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
