Mixer

Overview

Properties

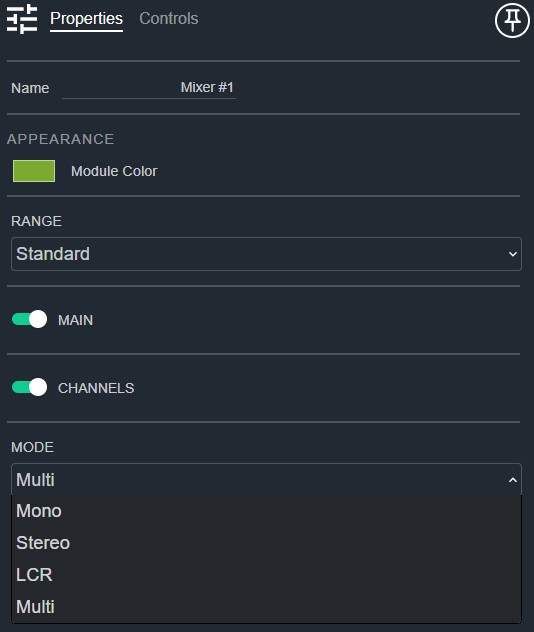

Mixer Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi
  • Main: Determines if there is a main channel control strip. Default: Enable
  • Channels: Determines if there are channel control strips. Default: Enable
  • Mode: Configure the output channels to "Mono", "Stereo", "LCR" or "Multi" (outputs match inputs). Default: Mono. Options: Mono|Stereo|LCR|Multi

Controls

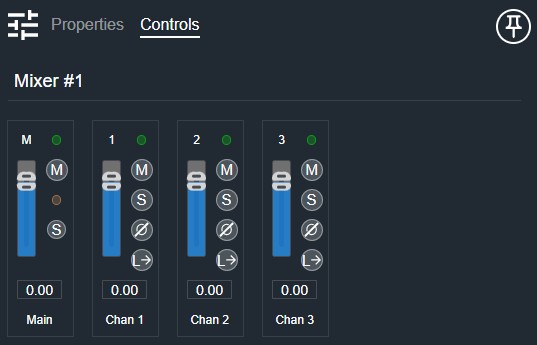

Mixer Controls

Main section (shown when Main is enabled):

  • Main Meter (LED, read-only): Audio level indicator for the mixed output.
  • Main Gain (Fader): Adjusts the overall mix output gain.
  • Main Mute (Button, toggle): Mutes the mix output.
  • Any Solos (LED, read-only): Indicates when any channel solo is active.
  • Clear Solos (Button, momentary): Clears all active channel solos.
  • Main Gain Readout (Numeric): Displays the main gain value.
  • Main Scribble (Label, editable): Custom label for the main output strip.

Per channel (shown when Channels is enabled):

  • Meter (LED, read-only): Audio level indicator for this input channel.
  • Pan (Fader): Adjusts the stereo or LCR pan position. Shown in Stereo and LCR modes only.
  • Gain (Fader): Adjusts this channel's contribution to the mix.
  • Mute (Button, toggle): Mutes this channel's contribution.
  • Solo (Button, toggle): Solos this channel in the mix.
  • Invert (Button, toggle): Inverts the phase of this channel.
  • Link (Button, toggle): Links this channel's gain to adjacent linked channels.
  • Gain Readout (Numeric): Displays the current gain value for this channel.
  • Scribble (Label, editable): Custom label for this channel strip.

I/O

Mixer IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1 signal, 1–64 channels
