Knob

A Knob is a rotary control used to adjust a parameter such as gain. The Design tab styles the selected Knob on a Control Panel. The sections appear top to bottom in the Modifier Panel.

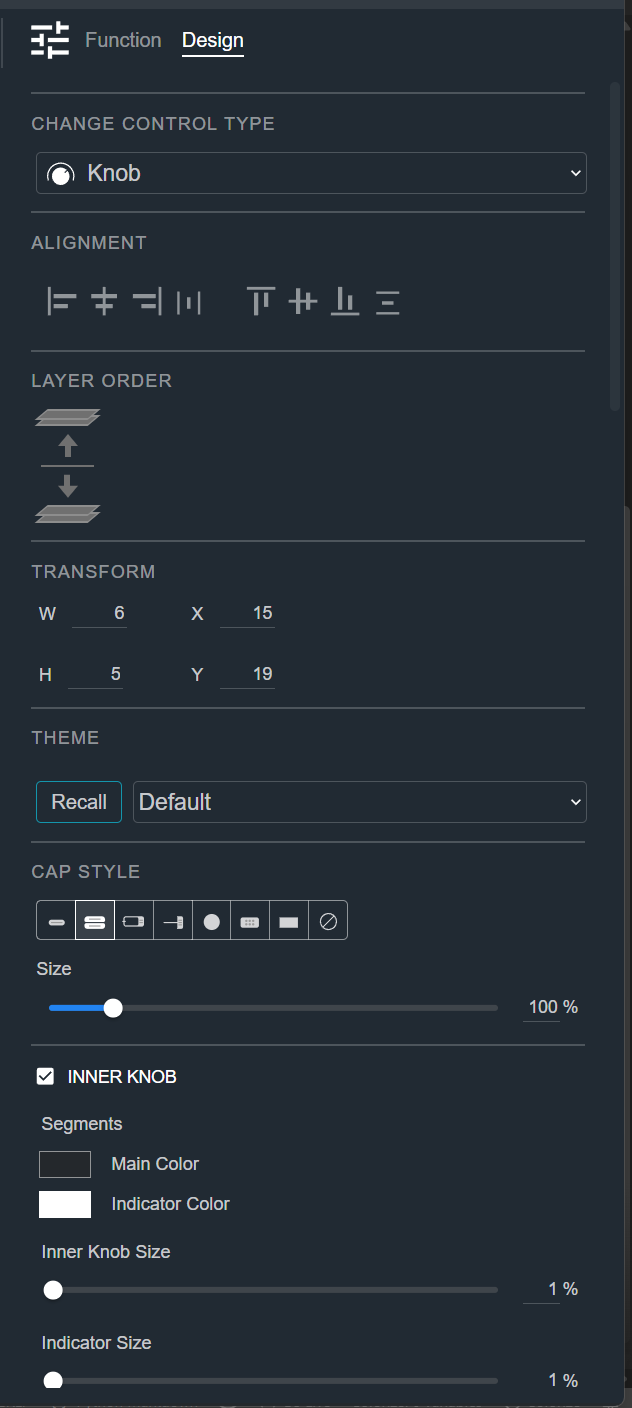

Design tab for a Knob, showing the Change Control Type, Alignment, Layer Order, Transform, Theme, Cap Style, and Inner Knob sections

Change Control Type

See Common Controls.

Alignment

See Common Controls.

Layer Order

See Common Controls.

Transform

See Common Controls.

Theme

See Common Controls.

Cap Style

See Common Controls.

Inner Knob

The Inner Knob section styles the rotating center of the knob and its indicator. Select the checkbox to show it.

Main Color — The color of the inner knob.
Indicator Color — The color of the indicator that points to the current value.
Inner Knob Size — How large the inner knob is.
Indicator Size — How large the indicator is.

Appearance

The Knob's Appearance section adds Cap Color, Cap Detail Color, and a Track color and size to the common appearance properties. See Common Controls.

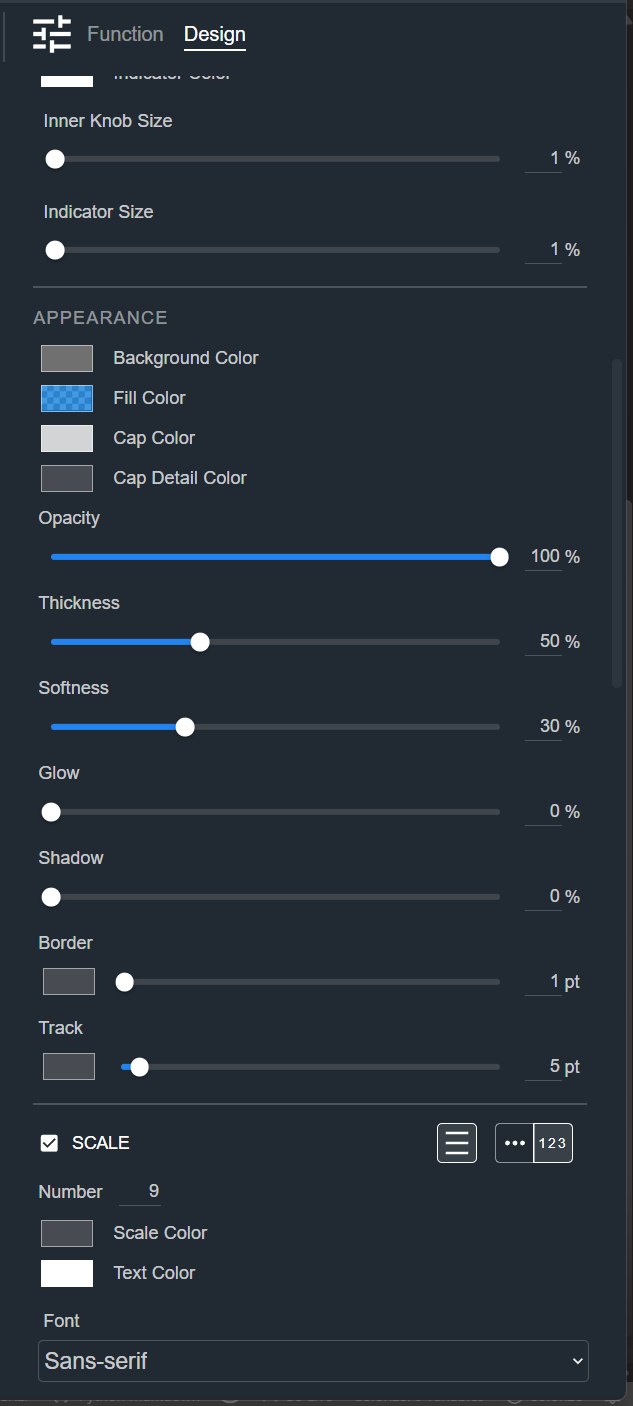

Design tab for a Knob, showing the Inner Knob, Appearance, and Scale sections
