Audio Input

Overview

Properties

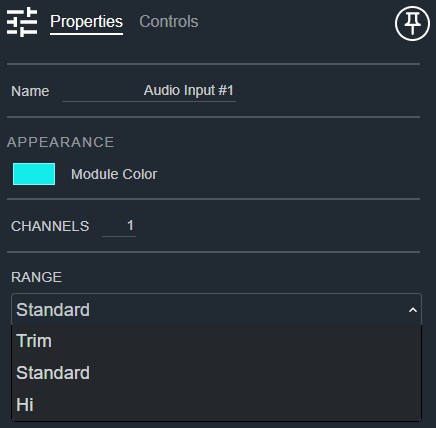

Audio Input Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Channels: The number of channels in each signal. Default: 1. Range: 1–64
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi
  • Selectable Sources: The number of separate audio source signals which can be selected from. Default: 1. Range: 1–64

Controls

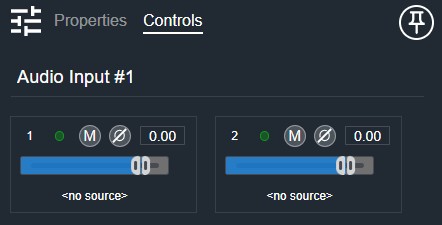

Audio Input Controls

Per channel:

  • Meter (LED, read-only): Audio level indicator for the input channel.
  • Mute (Button, toggle): Mutes this channel.
  • Invert (Button, toggle): Inverts the phase of this channel.
  • Gain Readout (Numeric): Displays the current gain value.
  • Gain (Fader): Adjusts the input gain.
  • Source (Drop List): Selects the audio source for this channel. Shown when multiple selectable sources are configured.

I/O

Audio Input IO

  • Source (Input, Audio): 1–64 signals, 1–64 channels
  • In (Output, Audio): 1–64 signals, 1–64 channels
