Control Output

Overview

Properties

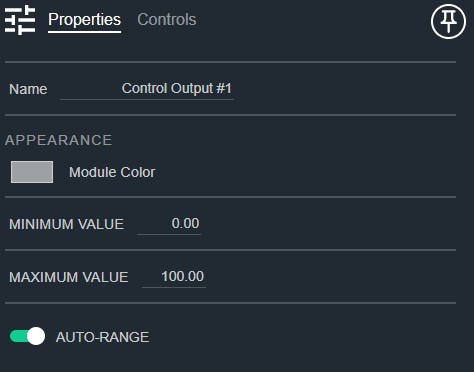

Control Output Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Minimum Value: The minimum control signal value expected. Default: 0. Range: -1000000000–1000000000
  • Maximum Value: The maximum control signal value expected. Default: 100. Range: -1000000000–1000000000
  • Auto-Range: Allows minimum and maximum control range to float with input signal level. Default: Enable

Controls

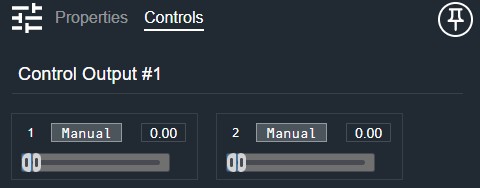

Control Output Controls

Per channel:

  • Manual (Button, toggle): Enables manual control of this channel's position.
  • Position (Numeric): Displays the current position value.
  • Position (Fader): Adjusts the manual control position.

I/O

Control Output IO

  • Out (Input, Control): 1–64 signals, 1 channel
  • Destination (Output, Control): 1–64 signals, 1 channel
