Preset Recall

Overview

Properties

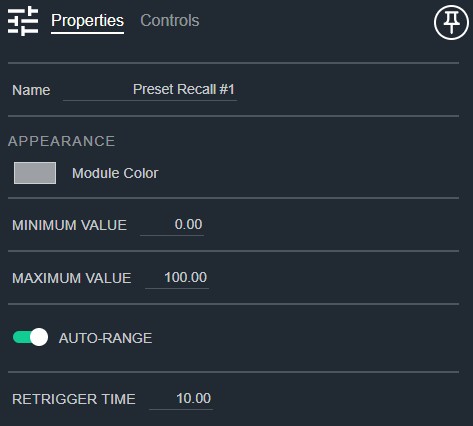

Preset Recall Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Minimum Value: The minimum control signal value expected. Default: 0. Range: -1000000000–1000000000
  • Maximum Value: The maximum control signal value expected. Default: 100.. Range: -1000000000–1000000000
  • Auto-Range: Allows minimum and maximum control range to float with input signal level. Default: Enable
  • Retrigger Time: The minimum time, in seconds, that can pass after a preset is no longer triggered, until it can be triggered again by the control input. Default: 5 seconds. Range: 0.25–86400 seconds

Controls

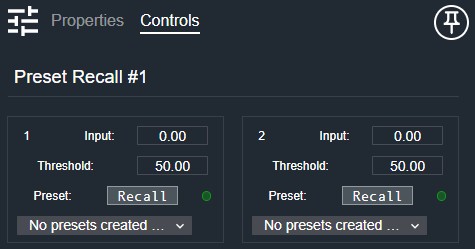

Preset Recall Controls

Per input:

  • Input (Numeric, read-only): Displays the current control input signal value.
  • Threshold (Numeric): Sets the threshold level that triggers preset recall.
  • Recall (Button, momentary): Manually recalls this input's preset. The Recall button always recalls the preset, even within the Retrigger Time.
  • Triggered (LED): Indicates this input's threshold has been exceeded and the preset was recalled.
  • Preset (Drop List): Selects the preset to recall when this input is triggered.

I/O

Preset Recall IO

  • In (Input, Control): 1–64 signals, 1 channel
