Delay

Overview

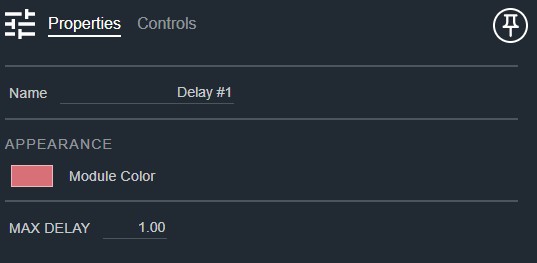

Properties

• Name: Type here to change the module name
• Appearance: Click on the colored box to change the module color
• Max Delay: Maximum Delay in Seconds. Default: 1.0. Range: .1–100

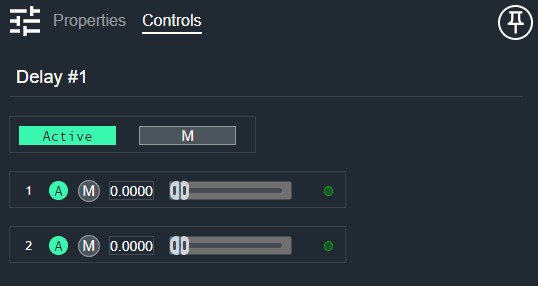

Controls

• Active (Button, toggle): Enables or bypasses all delay processing.
• Mute (Button, toggle): Mutes all delayed outputs.

Per signal:

• Active (Button, toggle): Enables or bypasses delay on this signal.
• Mute (Button, toggle): Mutes this signal's delayed output.
• Delay (Numeric): Displays the delay time for this signal.
• Delay (Fader): Sets the delay time for this signal.
• Meter (LED, read-only): Audio level indicator for this signal.

I/O

• In (Input, Audio): 1–64 signals, 1–64 channels
• Out (Output, Audio): 1–64 signals, 1–64 channels
