Graphic EQ

Overview

Properties

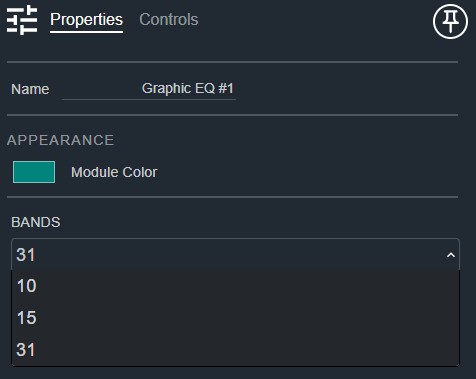

Graphic EQ Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Bands: Number of graphic EQ bands. Default: 31. Options: 10|15|31

Controls

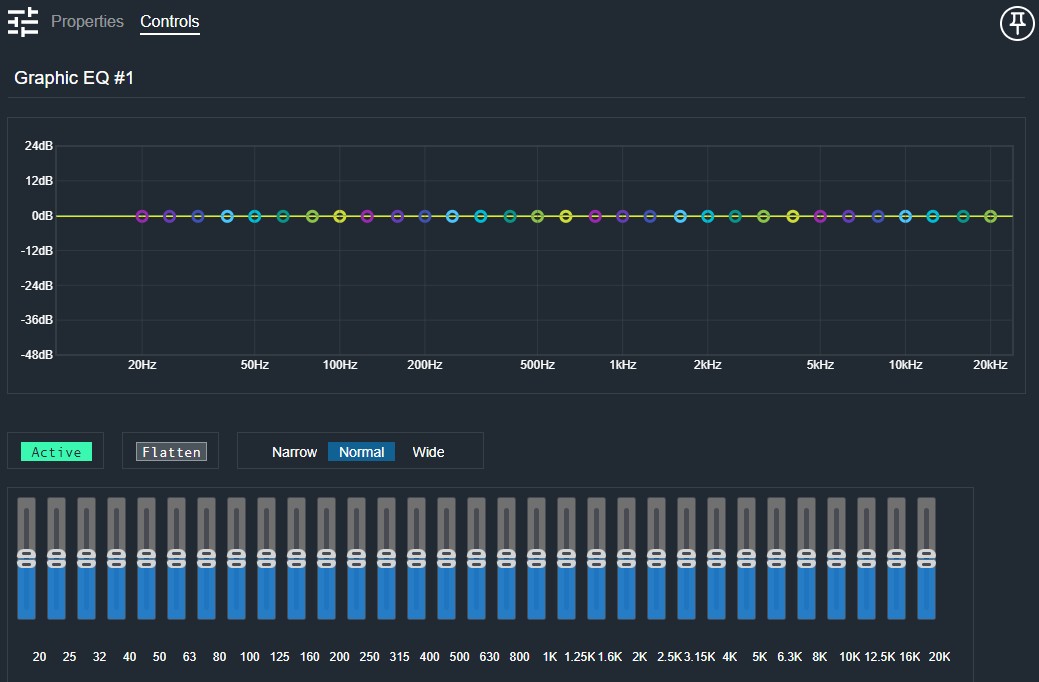

Graphic EQ Controls

  • Active (Button, toggle): Enables or bypasses the entire graphic EQ.
  • Flatten (Button, momentary): Resets all band faders to 0 dB.

Per band:

  • Gain (Fader): Adjusts the boost or cut for this frequency band.

I/O

Graphic EQ IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
