Noise Gate

Overview

Properties

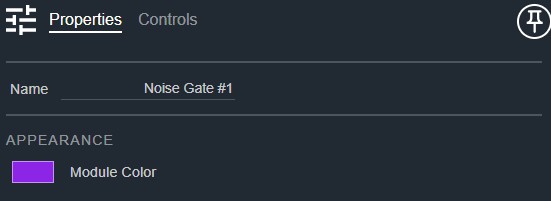

Noise Gate Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

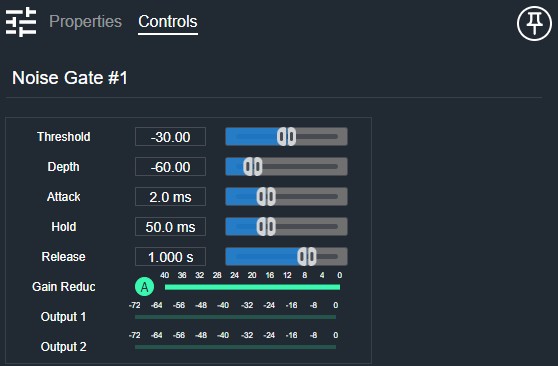

Noise Gate Controls

  • Threshold (Numeric): Displays the gate threshold level.
  • Threshold (Fader): Sets the gate threshold level.
  • Depth (Numeric): Displays the gate depth (attenuation when closed).
  • Depth (Fader): Sets the gate depth (attenuation when closed).
  • Attack (Numeric): Displays the gate attack time.
  • Attack (Fader): Sets the gate attack time.
  • Hold (Numeric): Displays the gate hold time.
  • Hold (Fader): Sets the gate hold time.
  • Release (Numeric): Displays the gate release time.
  • Release (Fader): Sets the gate release time.
  • Active (Button, toggle): Enables or bypasses the noise gate.
  • Gain Reduction (Meter): Displays the amount of gain reduction being applied.
  • Output Gain (Numeric): Displays the output makeup gain.
  • Output Gain (Fader): Sets the output makeup gain.
  • Output Meter (Meter): Displays the post-gate output signal level.

I/O

Noise Gate IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
