AGC

Overview

Properties

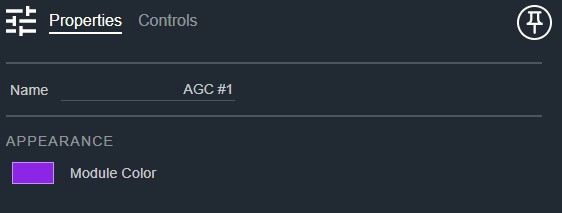

AGC Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

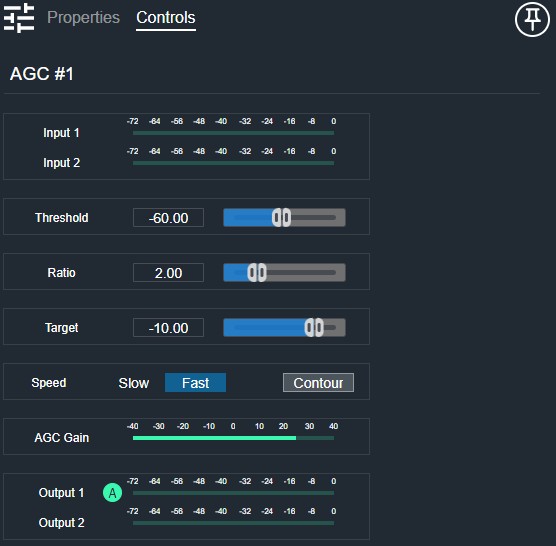

AGC Controls

Per input:

  • Input Meter (Meter): Displays the pre-AGC input signal level.
  • Threshold (Numeric): Displays the AGC threshold level. Shown in threshold mode.
  • Threshold (Fader): Sets the AGC threshold level. Shown in threshold mode.
  • Ratio (Numeric): Displays the AGC ratio. Shown in ratio mode.
  • Ratio (Fader): Sets the AGC ratio. Shown in ratio mode.
  • Target Output Level (Numeric): Displays the AGC target output level. Shown in target mode.
  • Target Output Level (Fader): Sets the AGC target output level. Shown in target mode.
  • Contour (Button, toggle): Enables contour (frequency-shaped) gain control.
  • Gain Meter (Meter): Displays the gain being applied by the AGC.
  • Active (Button, toggle): Enables AGC processing for each output.
  • Output Meter (Meter): Displays the post-AGC output signal level.

I/O

AGC IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
