Expander

Overview

Properties

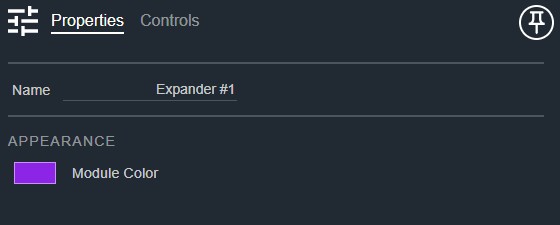

Expander Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

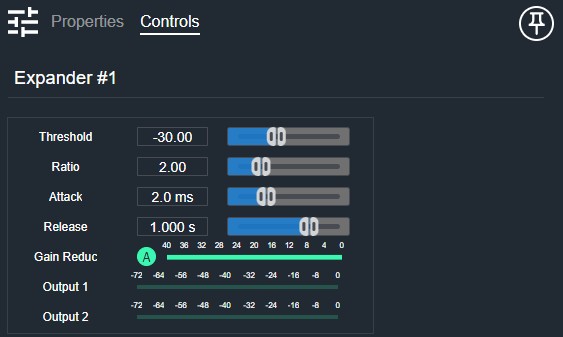

Expander Controls

Per band:

  • Threshold (Numeric): Displays the expansion threshold level.
  • Threshold (Fader): Sets the expansion threshold level.
  • Ratio (Numeric): Displays the expansion ratio.
  • Ratio (Fader): Sets the expansion ratio.
  • Attack (Numeric): Displays the expansion attack time.
  • Attack (Fader): Sets the expansion attack time.
  • Hold (Numeric): Displays the expansion hold time.
  • Hold (Fader): Sets the expansion hold time.
  • Release (Numeric): Displays the expansion release time.
  • Release (Fader): Sets the expansion release time.
  • Active (Button, toggle): Enables or bypasses expansion on this band.
  • Gain Reduction (Meter): Displays the amount of gain reduction being applied.
  • Output Gain (Numeric): Displays the output makeup gain.
  • Output Gain (Fader): Sets the output makeup gain.
  • Output Meter (Meter): Displays the post-expander output signal level.

I/O

Expander IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
