Noise Generator

Overview

Properties

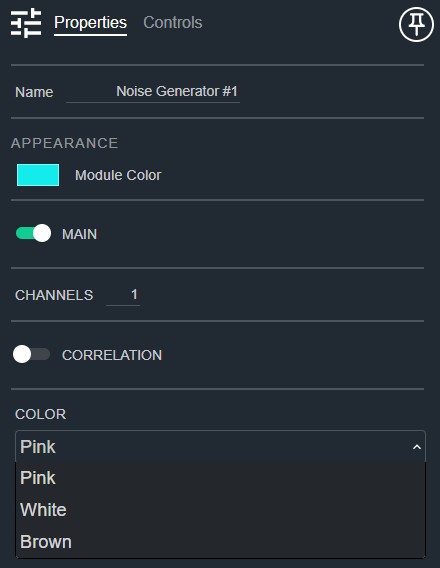

Noise Generator Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Main: Determines if there is a main channel control strip. Default: Enable
  • Channels: The number of channels in each signal. Default: 1. Range: 1–64
  • Correlation: Determines if output on separate channels and signals is correlated. Default: Uncorrelated
  • Color: Determines the noise color or spectrum. Default: Pink. Options: Pink|White|Brown Options: Pink|White|Brown

Controls

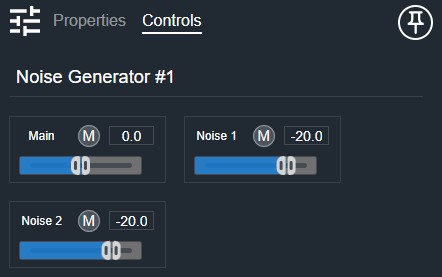

Noise Generator Controls

Main section (shown when Main is enabled):

  • Mute (Button, toggle): Mutes all channels simultaneously.
  • Gain Readout (Numeric): Displays the main gain value.
  • Gain (Fader): Adjusts the overall output gain.

Per channel:

  • Mute (Button, toggle): Mutes this channel.
  • Level Readout (Numeric): Displays the current level value.
  • Level (Fader): Adjusts the noise generator output level.

I/O

Noise Generator IO

  • Noise (Output, Audio): 1–64 signals, 1–64 channels
