A/B Switch

Overview

Properties

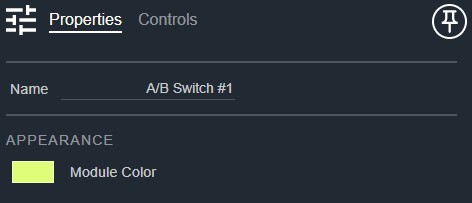

AB Switch Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color

Controls

AB Switch Controls

  • Switch (Button, toggle): Switches the output between input A and input B.
  • A (LED): Indicates input A is currently selected.
  • B (LED): Indicates input B is currently selected.

I/O

AB Switch IO

  • InA (Input, Audio): 1–64 signals, 1–64 channels
  • InB (Input, Audio): 1–64 signals, 1–64 channels
  • Output (Output, Audio): 1–64 signals, 1–64 channels
