Input Selector Out

Overview

Properties

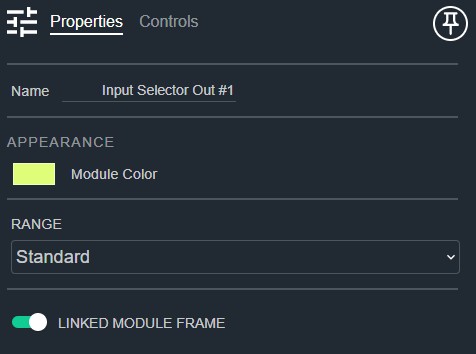

Input Selector Out Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

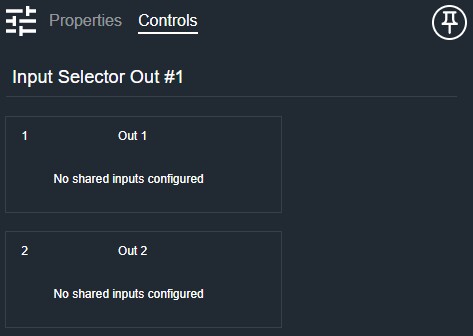

Input Selector Out Controls

Per output:

  • Gain (Fader): Adjusts this output channel's gain.
  • Gain Readout (Numeric): Displays the current output gain value.
  • Mute (Button, toggle): Mutes this output channel.
  • Meter (LED, read-only): Audio level indicator for this output channel.
  • Select (Drop List): Selects which input is routed to this output.
  • Previous (Button, momentary): Selects the previous available input.
  • Next (Button, momentary): Selects the next available input.

I/O

Input Selector Out IO

  • SharedIn (Input, Audio): 0–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
