Gain-sharing Automixer Leader

Overview

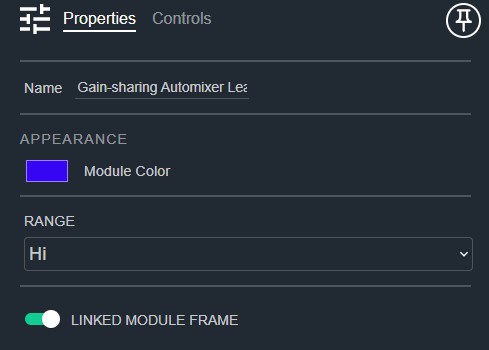

Gain Sharing Automixer Properties

Name: Type here to change the module name
Appearance: Click on the colored box to change the module color
Range: Select the gain range from three options: Trim (-24 to +24), Standard (-72 to +12), or Hi (-120 to +120). Default: Standard. Options: Trim|Standard|Hi
Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

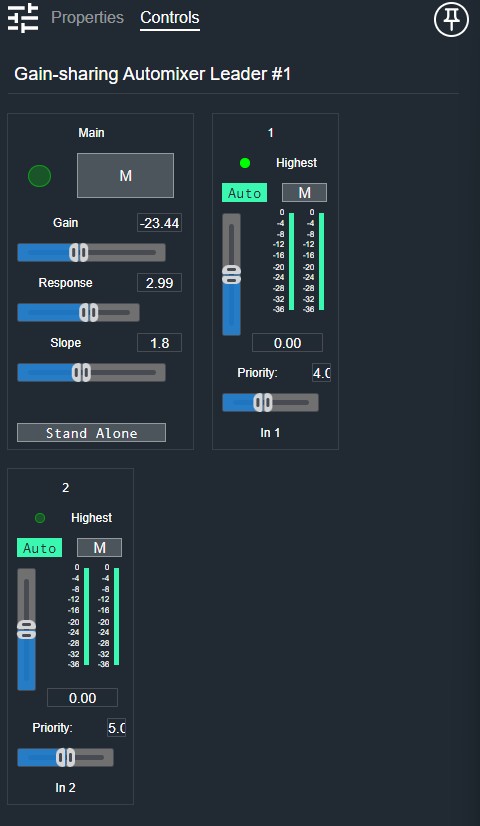

Gain Sharing Automixer Controls

Main section:

Mix Meter (LED, read-only): Audio level indicator for the automixed output.
Main Mute (Button, toggle): Mutes the mix output.
Main Gain Readout (Numeric): Displays the main gain value. Type a numeric value or use the Gain fader.
Main Gain (Fader): Adjusts the overall mix output gain.
Main Response Readout (Numeric): Displays the gain-sharing response time. Type a numeric value or use the Response fader.
Main Response (Fader): Sets the gain-sharing response time.
Main Slope Readout (Numeric): Displays the gain-sharing slope value. Type a numeric value or use the Slope fader.
Main Slope (Fader): Sets the gain-sharing slope (sensitivity to level differences).
Stand Alone (Button, toggle): Enables stand-alone mode, disconnecting from the chain.

Per channel:

Highest Gain (LED): Indicates this channel currently has the highest gain in the mix.
Auto (Button, toggle): Enables automatic gain sharing for this channel.
Mute (Button, toggle): Mutes this channel.
Gain (Fader): Adjusts this channel's gain.
Input Meter (Meter): Displays the pre-processing input level for this channel.
Gain Meter (Meter): Displays the gain-sharing gain applied to this channel.
Gain Readout (Numeric): Displays the current gain value for this channel.
Priority (Numeric): Displays the priority value for this channel.
Priority (Fader): Sets the gain-sharing priority for this channel.

Gain Sharing Automixer IO
