Gated Automixer Leader

Overview

Properties

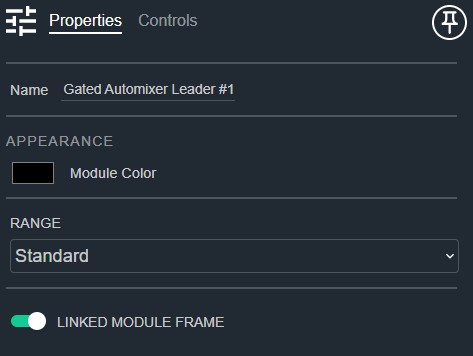

Gated Automixer Leader Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-120 to +120). Default: Standard. Options: Trim|Standard|Hi
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

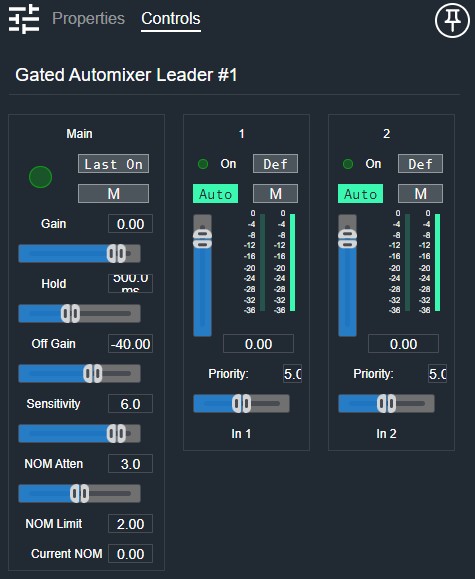

Gated Automixer Leader Controls

Main section:

  • Mix Meter (LED, read-only): Audio level indicator for the automixed output.
  • Last On (Button, toggle): Keeps the last active microphone open when no new signal is detected.
  • Main Mute (Button, toggle): Mutes the mix output.
  • Main Gain Readout (Numeric): Displays the main gain value.
  • Main Gain (Fader): Adjusts the overall mix output gain.
  • Main Hold Readout (Numeric): Displays the gate hold time.
  • Main Hold (Fader): Sets the gate hold time after signal falls below threshold.
  • Main Off Gain Readout (Numeric): Displays the off-state gain value.
  • Main Off Gain (Fader): Sets the gain applied to inactive microphone channels.
  • Main Sensitivity Readout (Numeric): Displays the gate sensitivity level.
  • Main Sensitivity (Fader): Sets the gate threshold sensitivity.
  • Main NOM Atten Readout (Numeric): Displays the NOM attenuation value.
  • Main NOM Atten (Fader): Sets the number-of-open-microphones attenuation amount.
  • Main NOM Limit Readout (Numeric): Sets the maximum number of microphones allowed open simultaneously.
  • Current NOM (Numeric, read-only): Displays the current number of open microphones.

Per channel:

  • On (LED): Indicates whether this channel's gate is currently open.
  • Default (Button, toggle): Sets this channel as the default always-on microphone.
  • Auto (Button, toggle): Enables automatic gating for this channel.
  • Mute (Button, toggle): Mutes this channel.
  • Gain (Fader): Adjusts this channel's gain.
  • Input Meter (Meter): Displays the pre-gate input level for this channel.
  • Gain Meter (Meter): Displays the post-gate gain reduction for this channel.
  • Gain Readout (Numeric): Displays the current gain value for this channel.
  • Priority (Numeric): Displays the gating priority value for this channel.
  • Priority (Fader): Sets the gating priority for this channel.

I/O

Gated Automixer Leader IO

  • In (Input, Audio): 1–64 signals, 1 channel
  • Out (Output, Audio): 1–64 signals, 1 channel
  • Mix (Output, Audio): 1 signal, 1 channel
