Gated Automixer Follower

Overview

Properties

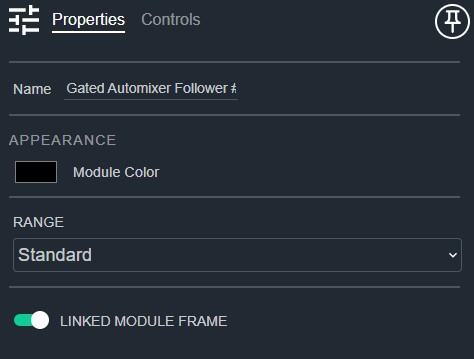

Gated Automixer Follower Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-120 to +120). Default: Standard. Options: Trim|Standard|Hi
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

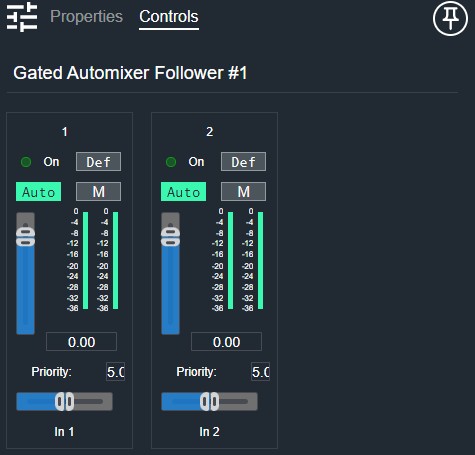

Gated Automixer Follower Controls

Per channel:

  • On (LED): Indicates whether this channel's gate is currently open.
  • Default (Button, toggle): Sets this channel as the default always-on microphone.
  • Auto (Button, toggle): Enables automatic gating for this channel.
  • Mute (Button, toggle): Mutes this channel.
  • Gain (Fader): Adjusts this channel's gain.
  • Input Meter (Meter): Displays the pre-gate input level for this channel.
  • Gain Meter (Meter): Displays the post-gate gain reduction for this channel.
  • Gain Readout (Numeric): Displays the current gain value for this channel.
  • Priority (Numeric): Displays the gating priority value for this channel.
  • Priority (Fader): Sets the gating priority for this channel.

I/O

Gated Automixer Follower IO

  • In (Input, Audio): 1–64 signals, 1 channel
  • Out (Output, Audio): 1–64 signals, 1 channel
