Matrix In/Out

Overview

Properties

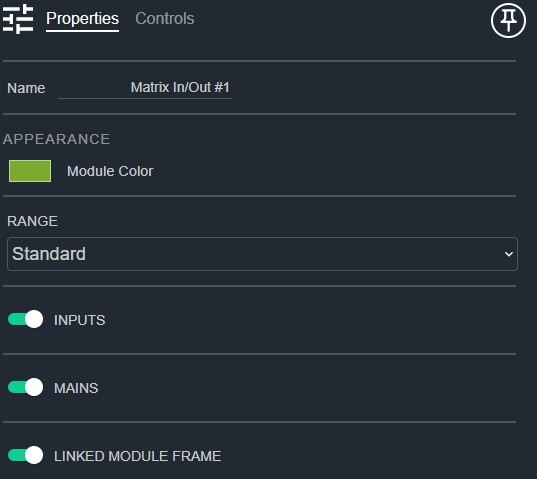

Matrix In Out Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Range: Configure the gain range to "Trim" (-24 to +24), "Standard" (-72 to +12), or "Hi" (-192 to +192). Default: Standard. Options: Trim|Standard|Hi
  • Inputs: Determines if there are input channel control strips. Default: Enable
  • Mains: Determines if there are mains output channel control strips. Default: Enable
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

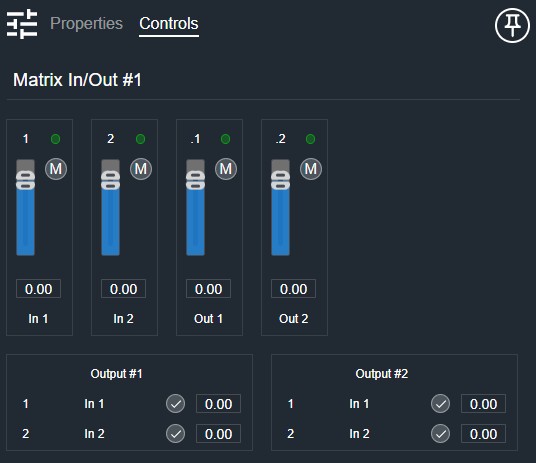

Matrix In Out Controls

Per local input (shown when Inputs is enabled):

  • Meter (LED, read-only): Audio level indicator for this input channel.
  • Gain (Fader): Adjusts this input channel's gain.
  • Mute (Button, toggle): Mutes this input channel.
  • Gain Readout (Numeric): Displays the current input gain value.
  • Scribble (Label, editable): Custom label for this input strip.

Per local output (shown when Mains is enabled):

  • Meter (LED, read-only): Audio level indicator for this output channel.
  • Gain (Fader): Adjusts this output channel's gain.
  • Mute (Button, toggle): Mutes this output channel.
  • Gain Readout (Numeric): Displays the current output gain value.
  • Scribble (Label, editable): Custom label for this output strip.

Per output crosspoint section:

Per shared input crosspoint:

  • Connect (Button, toggle): Enables or disables the connection from this shared input to this output.
  • Gain Readout (Numeric): Displays the crosspoint gain value.

I/O

Matrix In Out IO

  • In (Input, Audio): 1–64 signals, 1–64 channels
  • SharedIn (Input, Audio): 0–64 signals, 1–64 channels
  • SharedOut (Output, Audio): 1–64 signals, 1–64 channels
  • Out (Output, Audio): 1–64 signals, 1–64 channels
