AEC Ref

Overview

Properties

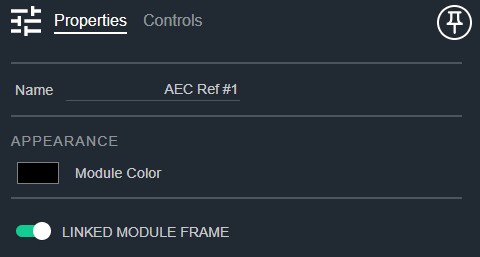

AEC REF Properties

  • Name: Type here to change the module name
  • Appearance: Click on the colored box to change the module color
  • Linked Module Frame: Determines if this module should be included in the automatic linked module frame. Default: Enable

Controls

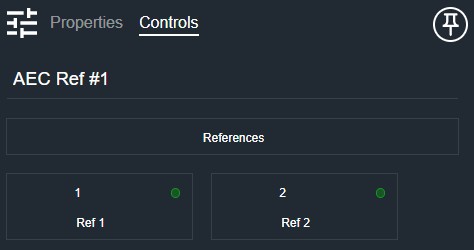

AEC REF Controls

Per local reference:

  • Meter (LED, read-only): Audio level indicator for this reference signal.

I/O

AEC REF IO

  • Ref (Input, Audio): 1–64 signals, 1 channel
  • Ref (Output, Audio): 1–64 signals, 1 channel
